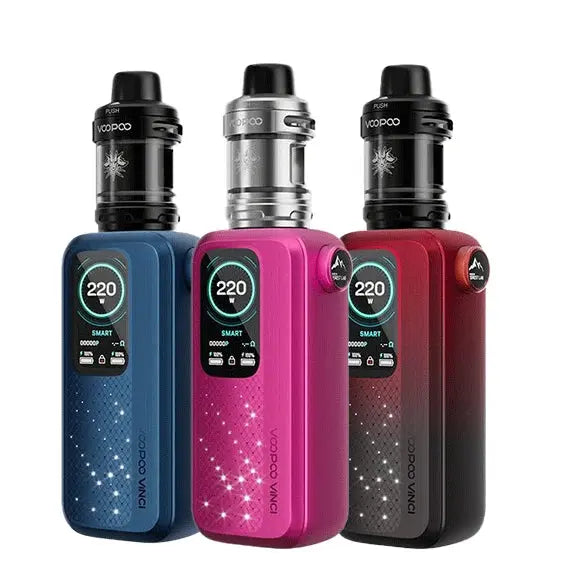

VOOPOO VINCI Spark220 220W Vape Kit

VOOPOO VINCI Spark220 Vape Kit – 220W Dual 18650 & UFORCE-X Tank

The VOOPOO VINCI Spark220 Vape Kit is a powerful 5–220W dual-18650 box mod kit created for adult vapers who want adjustable performance, a large colour display and the versatility of the VOOPOO PnP X coil platform. It combines the lightweight VINCI Spark220 device with the 2ml UK edition of the UFORCE-X Tank, two PnP X coils and an adjustable top-airflow system for DTL and RDL vaping.

Its distinctive aluminium-alloy body features an animated starlight panel containing 84 lights, while the 1.47-inch TFT screen provides a clear view of wattage, resistance, battery status, puff information and the selected operating mode. The lighting and animations can also be switched off when a more discreet appearance is preferred.

The VINCI Spark220 requires two matched high-drain 18650 batteries, which are sold separately. It is best suited to users who understand removable-battery care, coil priming and sub-ohm vaping rather than someone looking for a small, basic or draw-activated starter kit.

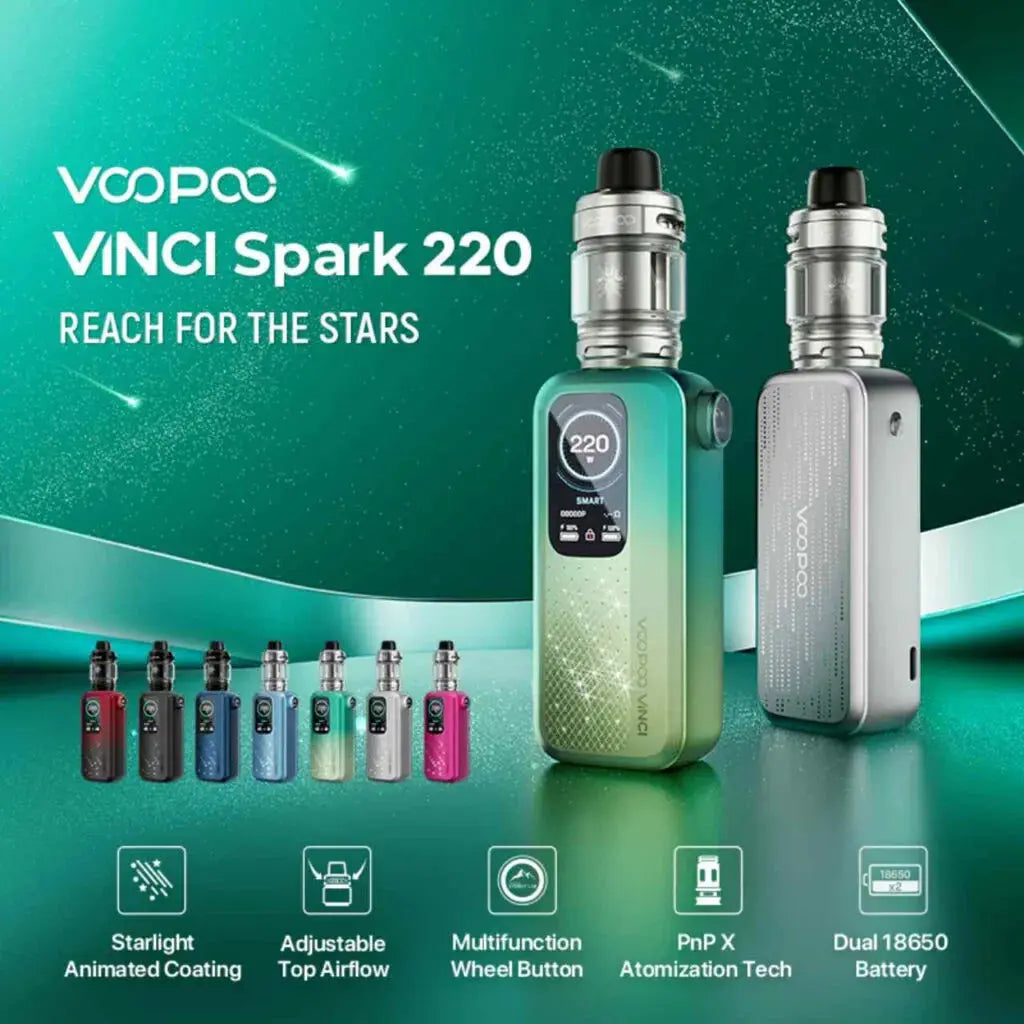

VOOPOO VINCI Spark220 Key Features

• Adjustable 5–220W output
• Powered by two removable 18650 batteries
• Batteries are not included
• Lightweight aluminium-alloy construction
• Animated starlight side panel with 84 lights
• Large 1.47-inch TFT colour display
• Smart, RBA and TC-TRC operating modes
• 2ml UK TPD UFORCE-X Tank
• Adjustable top airflow
• Convenient slide-open top filling
• Compatible with the VOOPOO PnP X coil range
• Includes 0.15ohm and 0.3ohm PnP X coils
• Suitable for DTL and RDL vaping with the supplied coils
• USB-C charging rated at 5V/3A
• Physical function-lock control
• Standard 510 tank connection
• Seven integrated safety protections

Why Choose the VOOPOO VINCI Spark220?

The VINCI Spark220 offers the power and flexibility normally associated with a full-size dual-battery mod while using a relatively lightweight aluminium-alloy chassis. Its maximum 220W output gives experienced users substantial adjustment room, although the correct setting should always be based on the fitted coil and the safe operating limits of the installed batteries.

The included UFORCE-X Tank makes the complete kit ready for sub-ohm DTL or restricted-direct-lung vaping once two suitable batteries and e-liquid have been added. VOOPOO's established PnP X coil platform also makes future coil replacement straightforward, with multiple resistances available for different airflow, vapour and power preferences.

Browse more hardware from the VOOPOO collection or compare the Spark220 with other devices in our advanced vape kit collection.

Starlight Design and 1.47-Inch TFT Display

The side of the device contains an animated lighting panel designed to create a starlight or nebula-style effect. This makes the VINCI Spark220 visually different from conventional box mods without placing the lighting ahead of practical everyday controls.

The 1.47-inch TFT screen clearly displays the selected wattage, coil resistance, battery levels and operating information. A wheel-style control and dedicated lock function make it easier to adjust or secure the settings. The lighting and animation can be disabled through the device menu when they are not required.

Dual 18650 Power

The VOOPOO VINCI Spark220 is powered by two external 18650 batteries. Batteries are not supplied with the kit, and not every battery carrying the 18650 size designation is suitable for a high-powered vaping device.

Always use two authentic, matched cells of the same brand, model, capacity, age and condition. The cells should be purchased together, charged together and kept as a dedicated pair. Never combine an old battery with a new one, mix different battery models or use a cell with torn wrapping, dents or other visible damage.

The continuous-discharge capability of the cells must be appropriate for the wattage at which the device will be operated. Browse our vape battery collection, but check the stated continuous-discharge rating and product guidance before selecting a battery for this device.

Although the VINCI Spark220 includes a USB-C port, a suitable external dual-bay charger is recommended for the routine charging and monitoring of removable battery pairs. View our vape battery chargers.

2ml UFORCE-X Top-Airflow Tank

The UK edition of the kit includes a 2ml UFORCE-X refillable tank. Its airflow inlets are positioned at the top, helping to reduce the amount of e-liquid that can escape through the airflow openings during ordinary use. Airflow can be adjusted to create an airier direct-lung inhale or a more restricted draw, depending on the installed coil and personal preference.

A slide-open top-filling mechanism gives access to the filling port without removing the entire top section. When filling, avoid the central airflow chimney, close the top securely and wipe away any excess liquid before use.

VOOPOO PnP X Coil Compatibility

The UFORCE-X Tank uses the VOOPOO PnP X coil platform. The kit normally includes a 0.15ohm coil for higher-powered DTL vaping and a 0.3ohm coil for a slightly cooler DTL or restricted-direct-lung inhale.

Replacement coils are available separately in our VOOPOO PnP X replacement coil listing.

The ranges above are VOOPOO's published operating ranges. Start near the lower end of the recommended range after fitting a new coil and increase gradually until the preferred result is reached. Never exceed the marked range on the installed coil.

Which E-Liquid Should Be Used?

For the included 0.15ohm and 0.3ohm sub-ohm coils, a high-VG e-liquid such as 70VG/30PG is generally the most suitable pairing. These thicker liquids are formulated for the higher liquid flow and vapour production associated with DTL and RDL coils.

Explore our 70/30 vape e-liquid collection or browse larger-value options in the 100ml shortfill collection.

The supplied low-resistance coils are intended for low-strength DTL or RDL e-liquid rather than high-strength MTL liquids. No e-liquid or nicotine is included with this product.

Smart, RBA and TC-TRC Modes

Smart Mode

Smart Mode detects the installed resistance and helps the user select an appropriate output range. This is useful when changing between compatible PnP X coils and reduces the risk of accidentally applying an unsuitable setting.

RBA Mode

RBA Mode provides direct manual wattage adjustment from 5W up to the device maximum. This is the main mode for experienced users who want full control over output and already understand the safe range of the installed coil and batteries.

TC-TRC Mode

TC-TRC provides specialist temperature-control settings for supported Ni200, titanium and stainless-steel wire types. Temperature control should only be used with a coil specifically designed for the selected material and by users who understand temperature-control setup. Standard PnP X coils should be operated using the appropriate wattage setting unless their packaging explicitly states otherwise.

Integrated Safety Protections

The VINCI Spark220 includes multiple electronic protections intended to monitor the device during use:

• Eight-second overtime protection
• Short-circuit protection
• Low-battery protection
• Overcharge protection
• Overtemperature protection
• Output over-current protection
• Reverse-battery protection

Electronic protection does not replace correct battery selection, inspection, handling and charging.

Who Is the VINCI Spark220 Best For?

This kit is particularly suitable for:

• Experienced adult vapers seeking a dual-18650 box mod kit
• DTL and RDL users who prefer adjustable airflow and wattage
• Existing PnP X coil users
• Users who want longer running time from removable battery pairs
• Vapers who prefer a large screen and clearly displayed settings
• Users who want a standard 510 device that can accept compatible tanks
• Anyone choosing between a VOOPOO VINCI or DRAG-series advanced kit

It may not be the most appropriate first device for someone who wants a compact, draw-activated kit with no manual setup. New users should be comfortable with coil priming, wattage adjustment, sub-ohm e-liquid selection and removable-battery safety before choosing this model.

How to Set Up the VOOPOO VINCI Spark220

1. Inspect two suitable matched 18650 batteries and confirm that both wraps and insulators are undamaged.
2. Insert the batteries according to the polarity markings inside the battery compartment.
3. Select the required PnP X coil and apply a few drops of e-liquid to the visible cotton openings.
4. Press the coil fully into the base of the UFORCE-X Tank.
5. Open the top-filling port and fill the tank, avoiding the central airflow chimney.
6. Close the filling port securely and allow the filled coil to stand for approximately five to ten minutes.
7. Begin near the lower end of the coil's marked wattage range.
8. Increase the output gradually and adjust the top airflow until the preferred draw is reached.

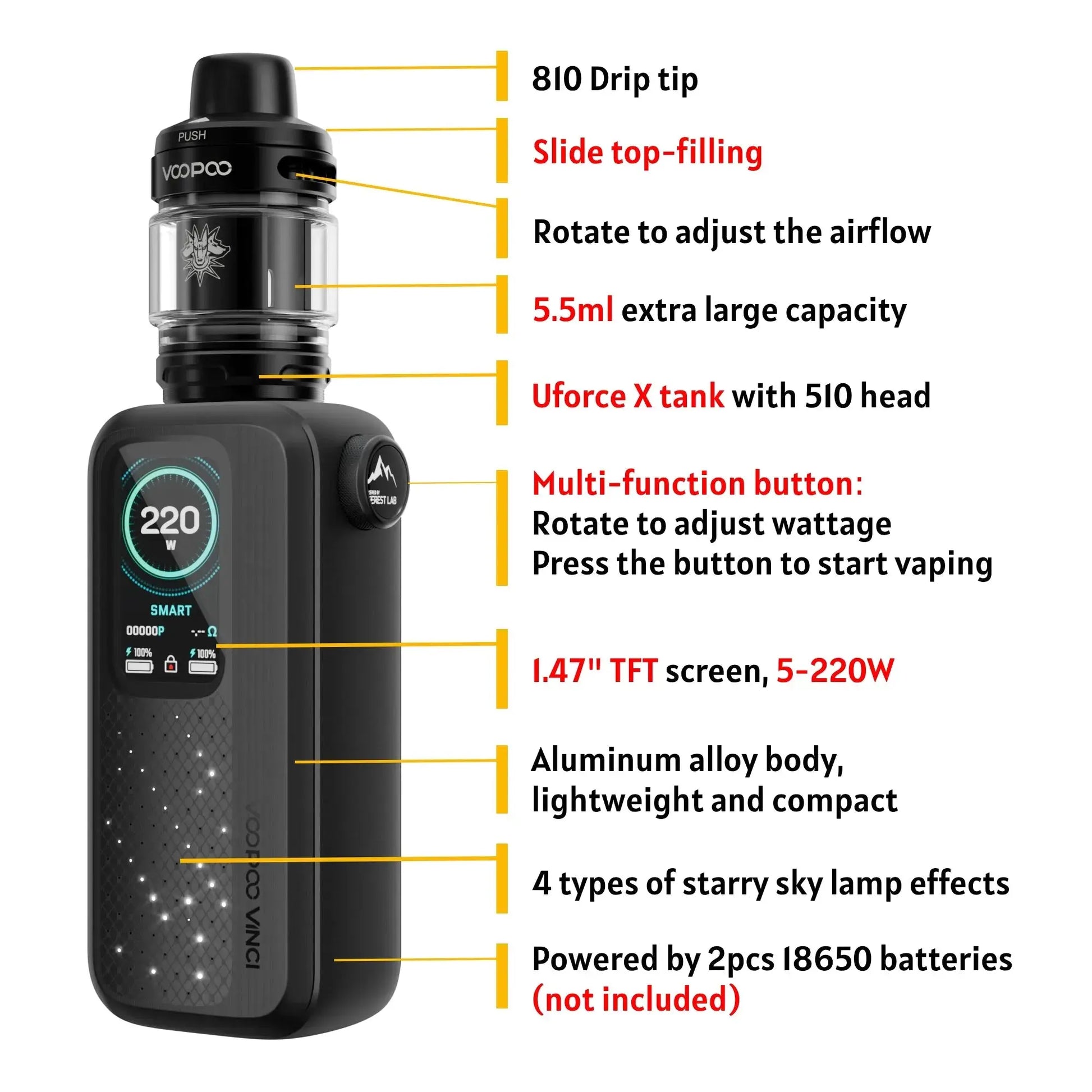

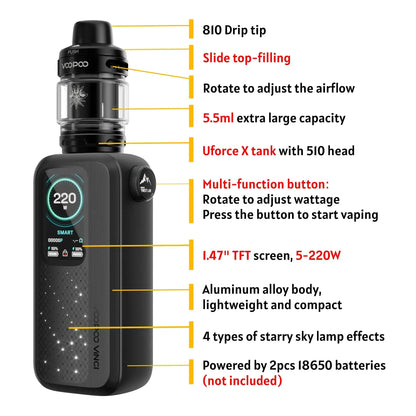

VOOPOO VINCI Spark220 Specifications

What Is Included?

• 1 x VOOPOO VINCI Spark220 device
• 1 x UFORCE-X Tank, PnP X edition, UK 2ml configuration
• 1 x VOOPOO PnP X 0.15ohm coil
• 1 x VOOPOO PnP X 0.3ohm coil
• 1 x USB-C charging cable
• 1 x accessories pack
• 1 x user manual

Two 18650 batteries and e-liquid are required and are not included.

Available Colours

The VOOPOO VINCI Spark220 is manufactured in the following colour finishes:

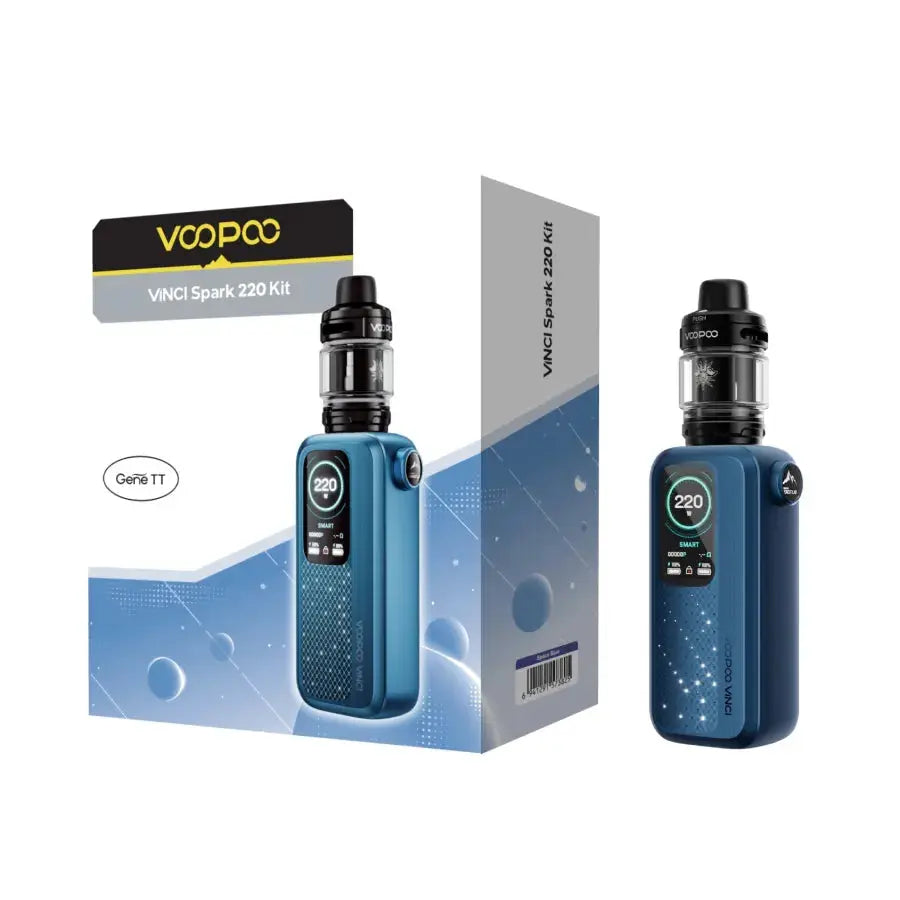

• Space Blue

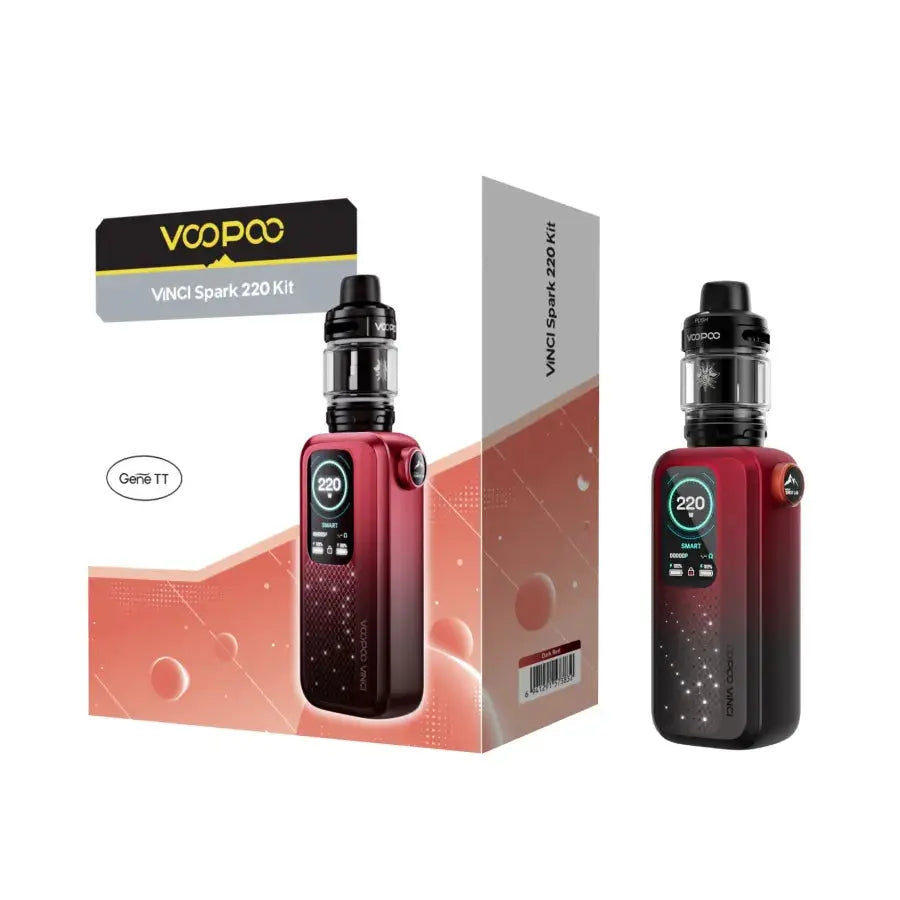

• Dark Red

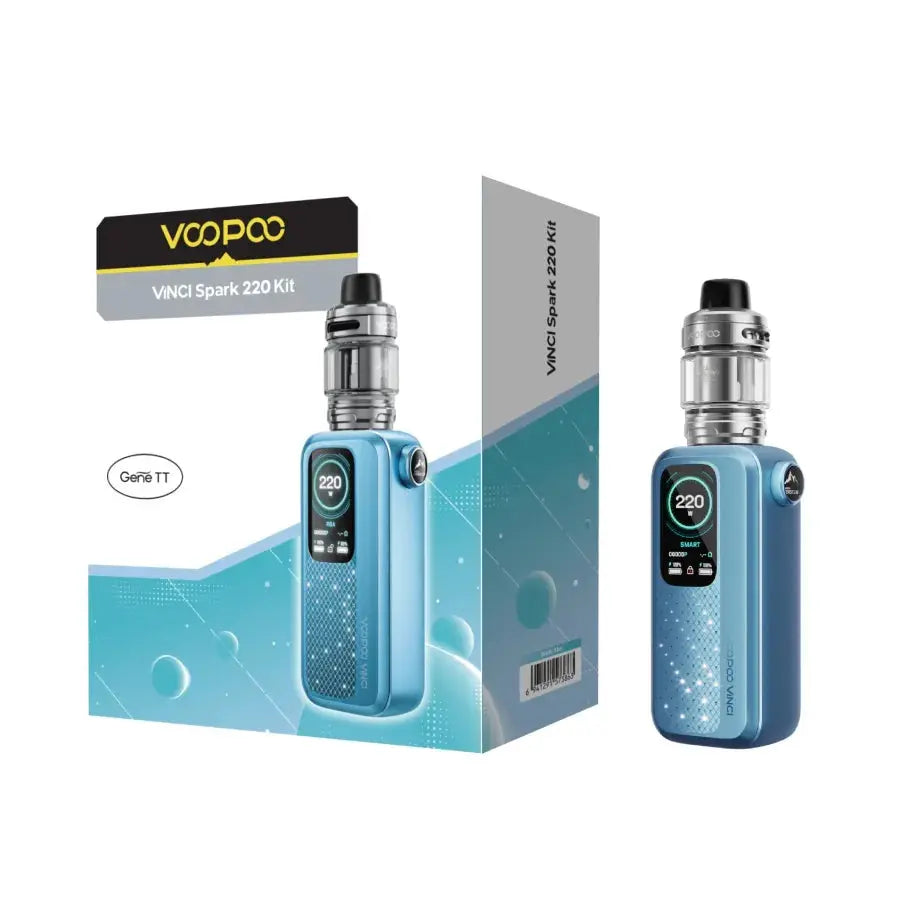

• Starlit Blue
• Spring Green
• Tech Silver

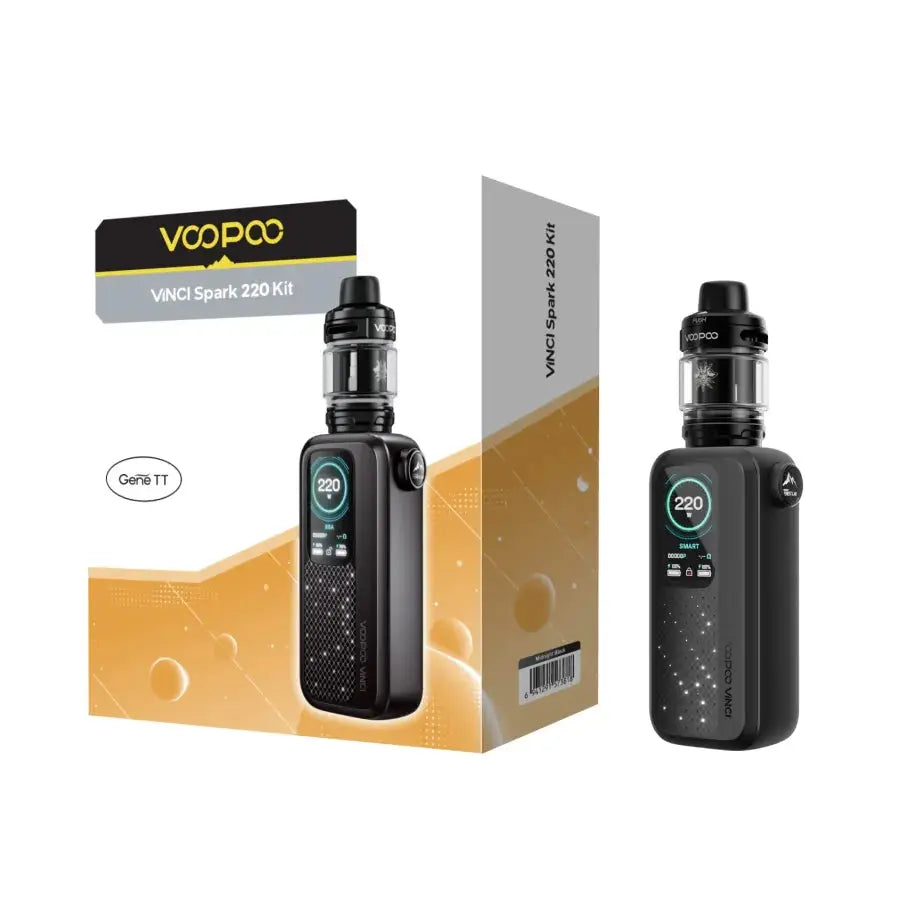

• Midnight Black

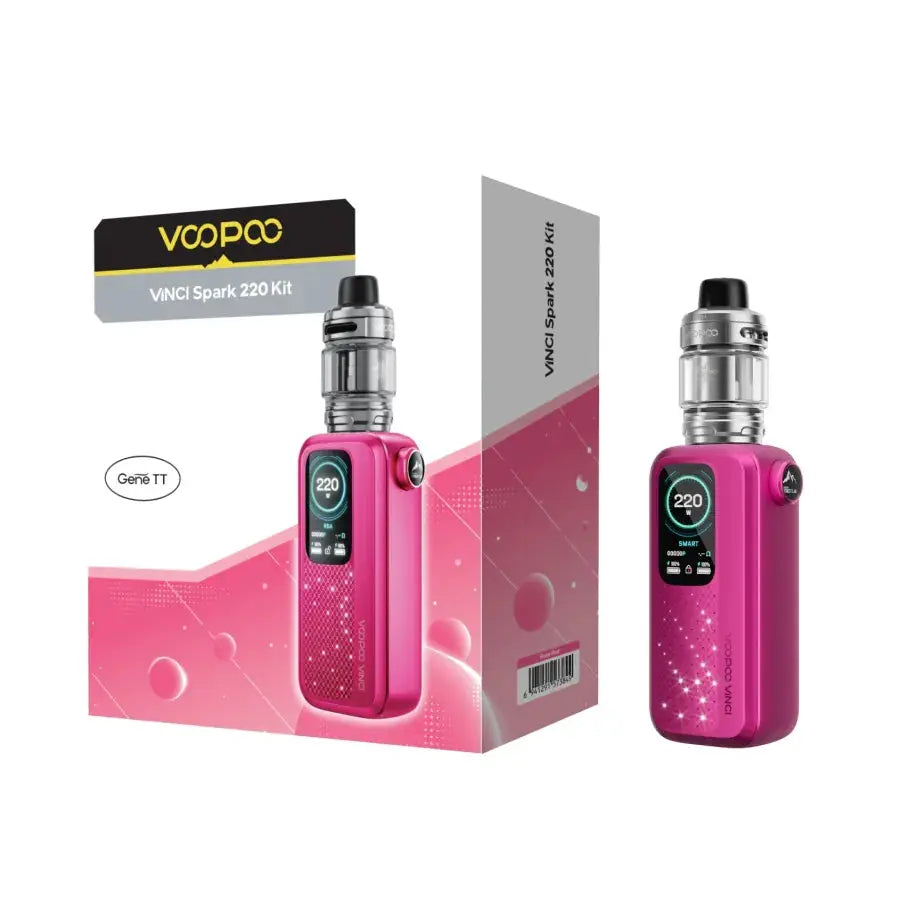

• Rose Red

Select the required in-stock colour from the product options before adding the kit to the basket. Colour appearance can vary slightly depending on screen settings and lighting.

Compare Other VOOPOO Vape Kits

The VINCI Spark220 is aimed at users who want external dual-18650 power, a conventional 510 tank connection and extensive output adjustment. Users who prefer an integrated-battery alternative can also compare the VOOPOO DRAG 6 Vape Kit.

For more compatible devices, tanks and replacement coils, visit the complete VOOPOO range at UK Vape Kings.

VOOPOO VINCI Spark220 Frequently Asked Questions

Does the VOOPOO VINCI Spark220 include batteries?

No. The device requires two suitable, matched high-drain 18650 batteries. Batteries must be purchased separately.

How many batteries does the VINCI Spark220 use?

It uses two removable 18650 cells. The batteries should be the same brand, model, capacity, age and condition and should be kept together as a dedicated pair.

Can any 18650 battery be used?

No. An 18650 describes the physical battery size, not its safe current capability. The cells must have a genuine continuous-discharge rating appropriate for the intended wattage. Do not use low-drain batteries, damaged wraps or mismatched cells.

Which coils fit the VINCI Spark220?

The included UFORCE-X Tank is compatible with the VOOPOO PnP X coil range. The kit normally includes one 0.15ohm coil and one 0.3ohm coil.

What wattage should be used with the included coils?

VOOPOO publishes a 60–80W range for the included 0.15ohm coil and a 32–40W range for the included 0.3ohm coil. Begin at the lower end after fitting and priming a new coil.

What e-liquid is best for the VINCI Spark220?

A 70VG/30PG high-VG e-liquid is generally the preferred pairing for the supplied 0.15ohm and 0.3ohm sub-ohm coils. These coils are intended for low-strength DTL or RDL e-liquid.

What is the capacity of the UK VINCI Spark220 tank?

The UK TPD version has a 2ml e-liquid capacity.

Is the VINCI Spark220 suitable for mouth-to-lung vaping?

The two supplied coils are mainly intended for DTL and RDL vaping. Higher-resistance PnP X coils are available for tighter, lower-powered use, although the size and airflow design of the UFORCE-X means the kit is primarily marketed as an advanced DTL or RDL device.

Is the VINCI Spark220 suitable for beginners?

Smart Mode can make wattage selection easier, but this is still an advanced dual-battery sub-ohm kit. It is better suited to users who understand battery safety, coil priming, airflow adjustment and coil wattage ranges.

How do I fill the UFORCE-X Tank?

Slide the top section to expose the filling port, add e-liquid through the port while avoiding the central chimney, and close the top securely. Wipe away excess liquid before using the device.

How long should a new PnP X coil be left to prime?

Apply e-liquid to the exposed cotton, fill the tank and leave the coil to saturate for approximately five to ten minutes. Start at the lower end of the recommended wattage range.

Can the VINCI Spark220 lights be turned off?

Yes. The lighting and animation can be disabled through the device settings.

Can the VINCI Spark220 be charged through USB-C?

Yes. The device includes a USB-C port rated at 5V/3A. For routine removable-battery charging, a quality external dual-bay charger is recommended.

Can another tank be used on the VINCI Spark220?

The device has a standard 510 connection and can accept compatible 510 tanks. Check the tank diameter, coil resistance, required output and battery demands before use.

What is the difference between VINCI Spark220 and VINCI Spark100?

The VINCI Spark220 is the larger dual-18650 model with output up to 220W. The Spark100 is a lower-powered single-18650 device with output up to 100W.

Does the VINCI Spark220 contain nicotine?

No. This hardware kit contains no nicotine or e-liquid. Nicotine is only present when a nicotine-containing e-liquid is separately added.

Important Safety and Age Information

This product is intended only for adults aged 18 and over. It is not intended for children, non-smokers or anyone who is not already using nicotine or vaping products. Keep the device, batteries, coils and all e-liquids away from children and pets.

Read the supplied manual before use. Use only undamaged, authentic batteries suitable for the intended output. Do not leave batteries charging unattended, expose them to extreme temperatures, carry loose cells with metal objects or use a cell with a damaged wrap.

No e-liquid, nicotine or batteries are included. Nicotine is an addictive substance when a nicotine-containing e-liquid is used.
